Hue

Philips Hue over the bridge's own API (CLIP v2, https on the LAN). Eight palettes and a bar item: rooms, lights and scenes at the root, a light or a room under the keys, sensors, automations, entertainment areas, the home on the bar, and a guided pairing. Nothing goes through the Hue cloud; the cloud is asked once, for the bridge's address, and only during setup.

Pairing

Set up Hue (a view palette; every other palette is a single "Set up Hue" row until a bridge is paired):

1. The bridges on the network are listed: from https://discovery.meethue.com/ (the addresses bridges on this public IP have phoned home with) and from mDNS (_hue._tcp, through dns-sd on macOS and avahi-browse on Linux). Each is asked its name and id (GET /api/0/config, no key needed). i types an address by hand, r scans again.

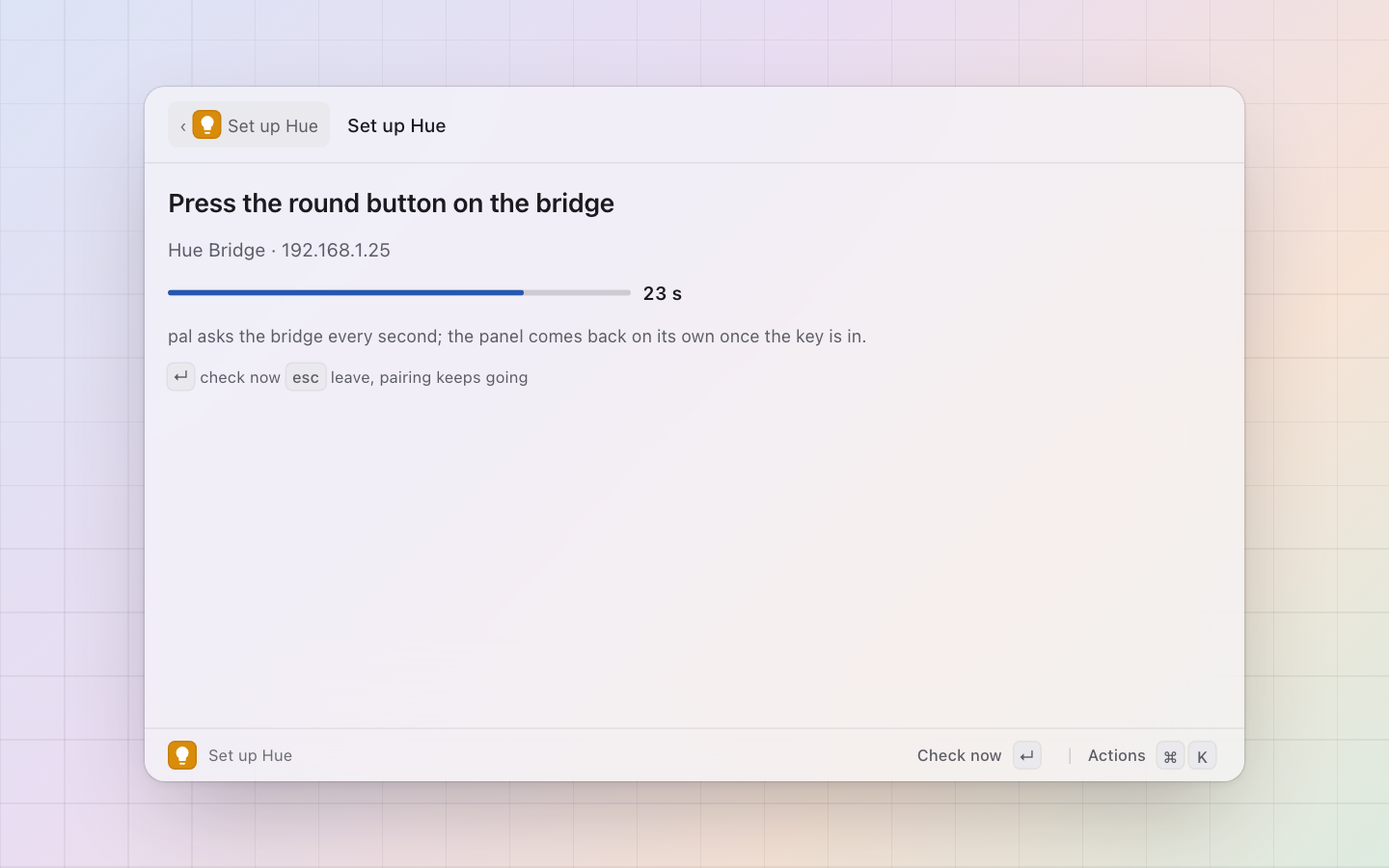

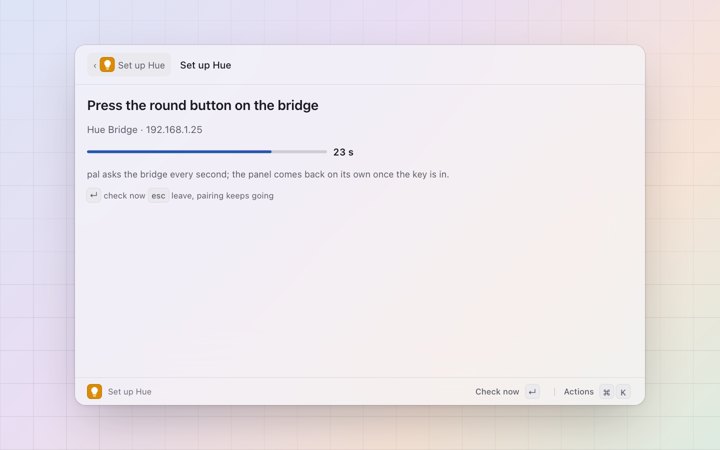

2. 1..9 (or Enter on the first) starts press-link: the view says "Press the round button on the bridge" with a thirty-second countdown, and a background task asks the bridge every second (POST /api with devicetype: "pal#<host>", generateclientkey: true). Escape leaves the panel; the task keeps going and brings pal back inside the setup once the key is in (effects.run({ push })), or says in the HUD that the button was not pressed. Enter checks at once.
3. Paired: the bridge's address and application key are written to the settings (settings.set: bridge and application_key under [extensions.hue], the key itself in the OS keychain and the file holding the keychain: reference, exactly as if pasted under Settings › Extensions › Hue), and the rest of the record (the entertainment client key, the pinned TLS certificate) goes to pal's storage (<data dir>/pal/storage/hue.json, bridges); then the home is read and the event stream opened. c copies the key. x forgets the bridge: its record leaves storage and, when the settings hold it, the two keys leave the file.

Several bridges make one home: the settings hold one (the first paired, or the one typed there), and any further bridge paired keeps its key in its storage record; the rows say which bridge a thing is on when there is more than one. A key typed into the settings for an address wins over a stored one for that address.

TLS

Every request is https. The bridge's certificate has its bridge id as the CN and is signed by Signify's private root CA (root-bridge, cert.ts, sha256 F0:BD:8E:65:…:8D:8A:CF, copied from the developer site's "Using HTTPS" page); pal verifies against that root plus the leaf pinned at pairing (an older bridge's self-signed certificate is pinned as its own root). The host name check is off, since the CN is the id rather than the address; pairing checks the CN against the id discovery gave. insecure = true skips all of it, for a bridge behind a proxy. Bun ignores what checkServerIdentity returns (measured on 1.4.2), so a mismatched CN after pairing is logged, not refused; the chain check is the protection.

The model and the stream

One GET /clip/v2/resource per bridge reads everything (rooms, zones, devices, lights, grouped lights, scenes, sensors, buttons, behaviours, entertainment configurations) into one map, and the bridge's event stream (GET /eventstream/clip/v2, server-sent events) patches it from then on, reconnecting with backoff and re-reading whole after a gap. So a listing or a view is drawn from memory, and a change made in the Hue app, on a switch or by an automation reaches the rows, the view (on its next key) and the bar item (pushed, at most every 300 ms) without a request. A change from pal is one PUT, applied to the model at once and confirmed by the stream; per resource the newest state is sent no more often than Hue asks (one per light per 100 ms, one per group per second), so a held arrow key collapses to one command.

Ids are slugs of the names, unique per kind: room:living-room, zone:evening, light:sofa-lamp, scene:living-room/relax, smart:living-room/natural-light, sensor:hallway-sensor-motion, auto:weekday-wake-up, ent:tv-area; a second "Lamp" is light:lamp-2. They read in a deep link and an item_hotkeys entry, and a rename changes them (so does the frecency of the row). cmd+shift+c copies one.

Palettes

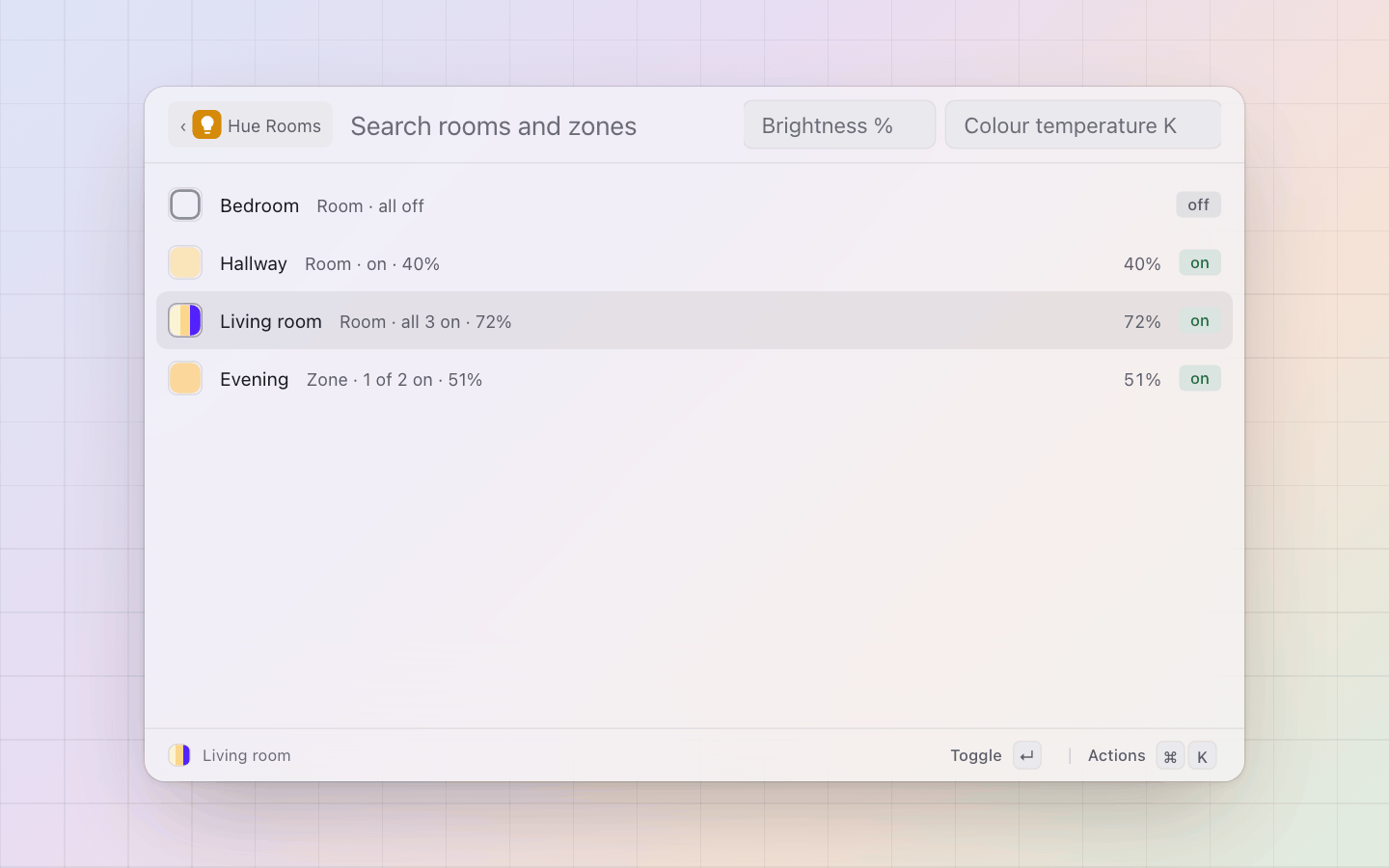

Hue Rooms (hue-rooms, live, primary tier): rooms then zones, each with a tile of its lit lights' colours as stripes (faded with the brightness; an outline when off), how many of its lights are on, the grouped brightness, an on/off tag. Enter toggles the grouped light, cmd+enter opens the room under the keys, cmd+s its scenes, cmd+l its lights. living room at the root and Enter toggles it. The row's fields in the bar, a brightness in % and (when a light in the room tunes white) a colour temperature in K, go with cmd+shift+b only: one PUT on the grouped light with the transition, 0 turns it off, the kelvin lands inside the lights' range; a pick without the fields asks in a form.

Hue Lights (hue-lights, live): every light under its room's section, a swatch of its colour (the bulb-off glyph when off), the room, the archetype, the temperature in kelvin, unreachable in red when Zigbee lost it, the running effect, the brightness. Enter toggles, cmd+enter opens it, cmd+b blinks it (alert: breathe), cmd+c copies its hex, cmd+shift+b sets the brightness (%) and, on a white-tuning light, the colour temperature (K) typed into the bar's fields (arguments brightness, kelvin; 0 is off; the rest of the actions ignore them). The detail pane has the xy, the gamut, the effects and the reachability.

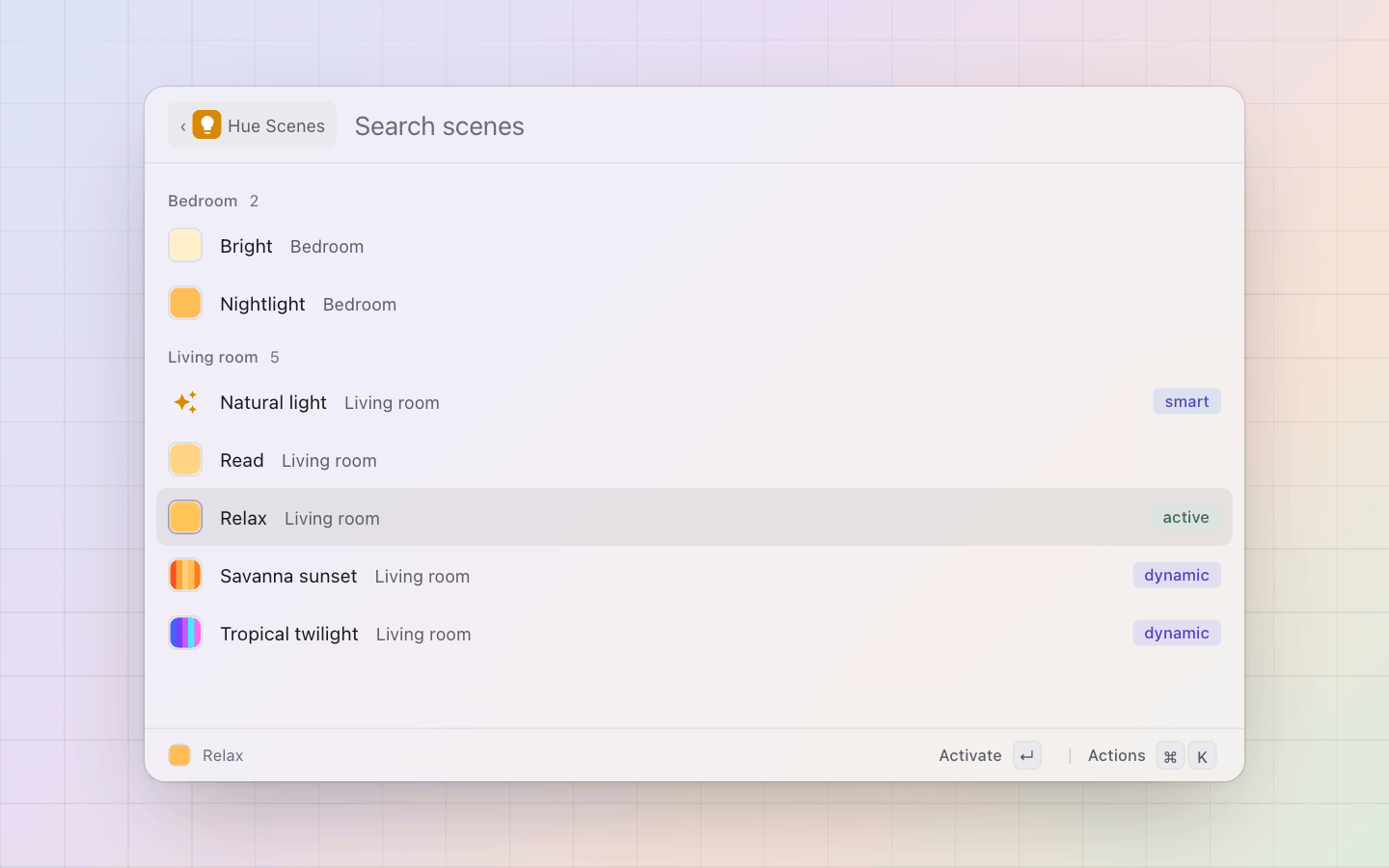

Hue Scenes (hue-scenes, live, primary tier): by room, each a strip of up to five swatches (the palette's colours, else the actions', a temperature as its white), active or playing, dynamic for one with a palette, smart for a smart scene. Enter recalls it with the transition, cmd+enter plays the palette dynamically, cmd+o opens the room. relax at the root and Enter plays it.

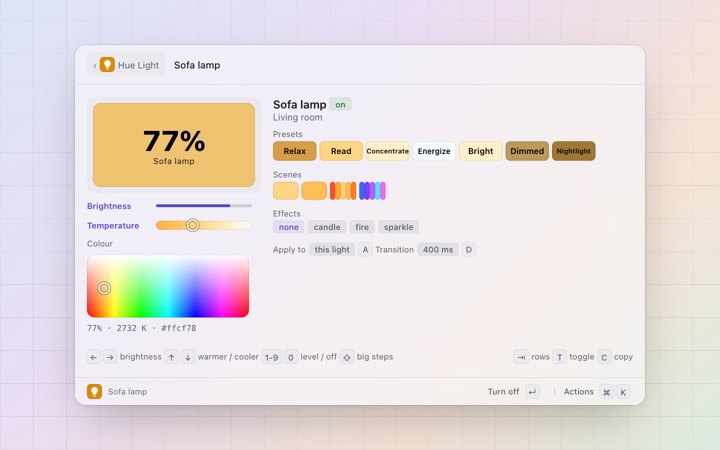

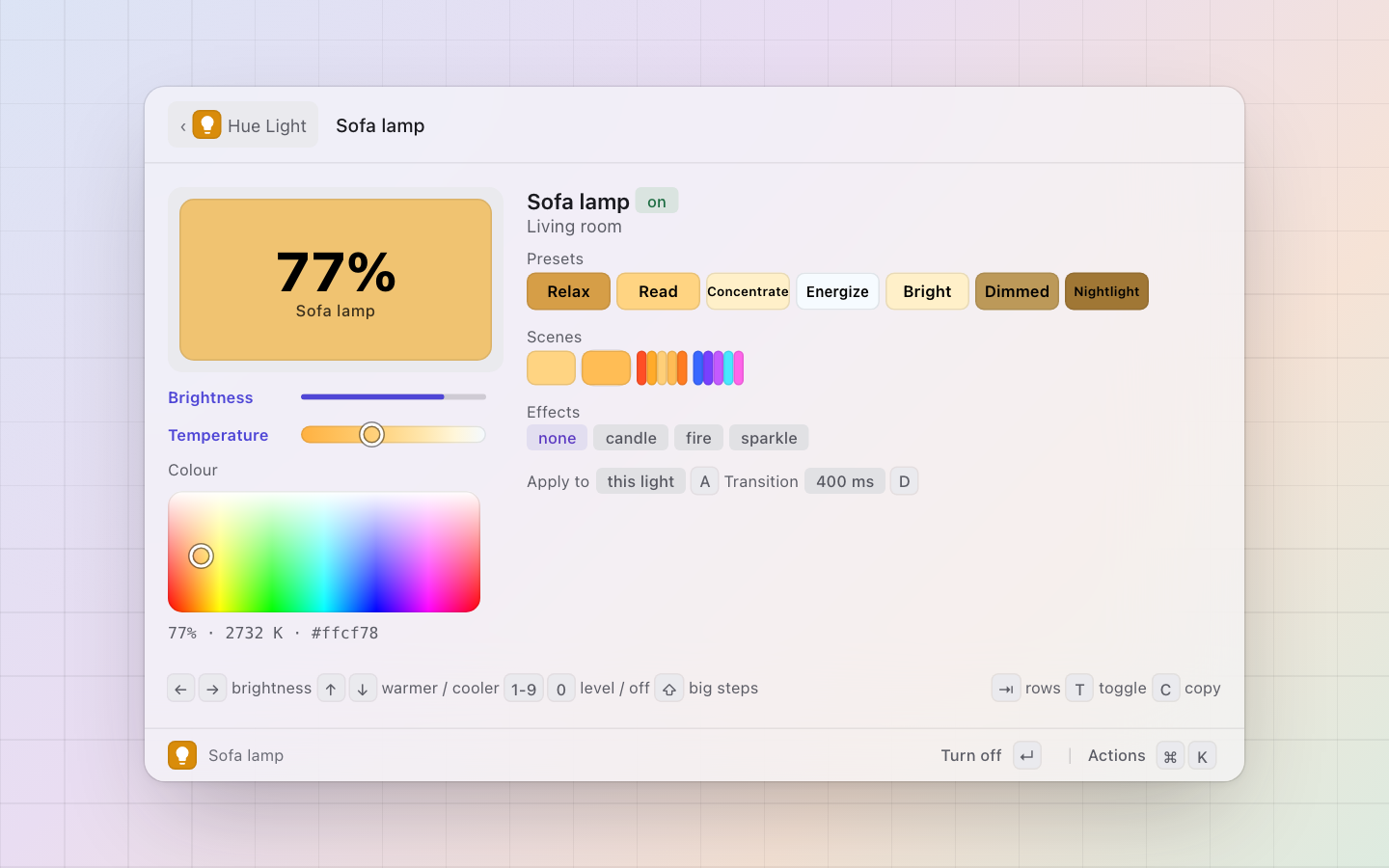

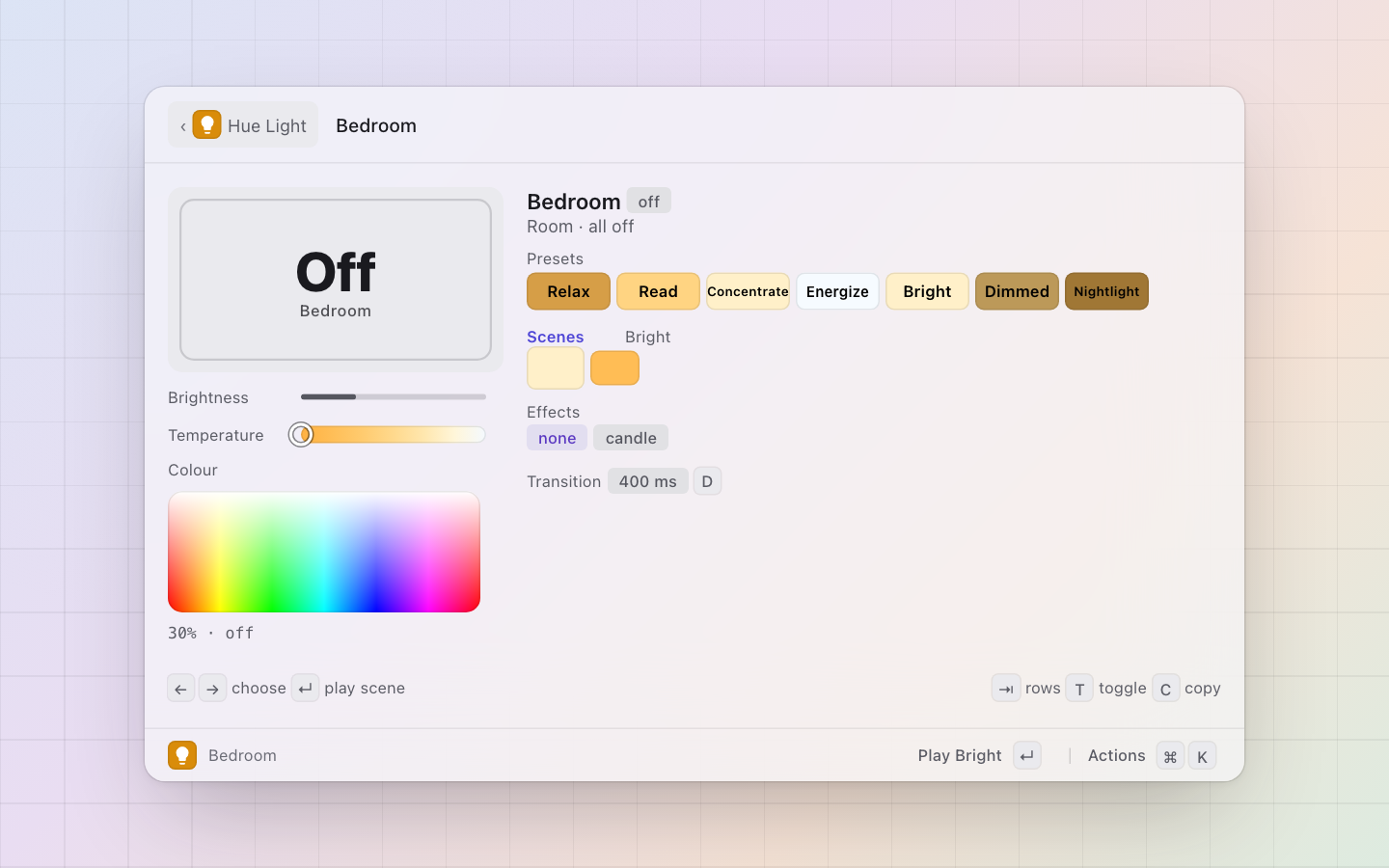

Hue Light (hue-light, a view): a light or a room under the keys, opened from a row (never listed at the root). Left: the tile in the current colour with the brightness and name, the brightness bar, the temperature along a warm-to-cool strip with a marker (the light's own mirek range), the hue/saturation plane with a marker (only for a colour light or a room with one). Right: the name and state, the presets (Relax, Read, Concentrate, Energize, Bright, Dimmed, Nightlight, as the Hue app defines them), the room's scenes as strips, the effects the light supports (candle, fire, sparkle, prism, opal, glisten and the rest, none first), and the options: apply to this light or its room (a), the transition (d: instant, 400 ms, 1 s, 4 s). Keys: ←/→ brightness in 5 % (⇧ 20 %), ↑/↓ cooler/warmer by 20 mirek (⇧ 80), 1..9 = 10..90 %, 0 off, t/space toggle, tab walks light → colour → presets → scenes → effects (⇧tab back); on the colour row the arrows move hue (10°, ⇧ 40°) and saturation (0.05, ⇧ 0.2) inside the light's gamut; on a row ←/→ choose and Enter applies; s the scenes as a list, o the room, i blink, c copy the hex, r read the bridge again.

Set up Hue (hue-setup, a view): above.

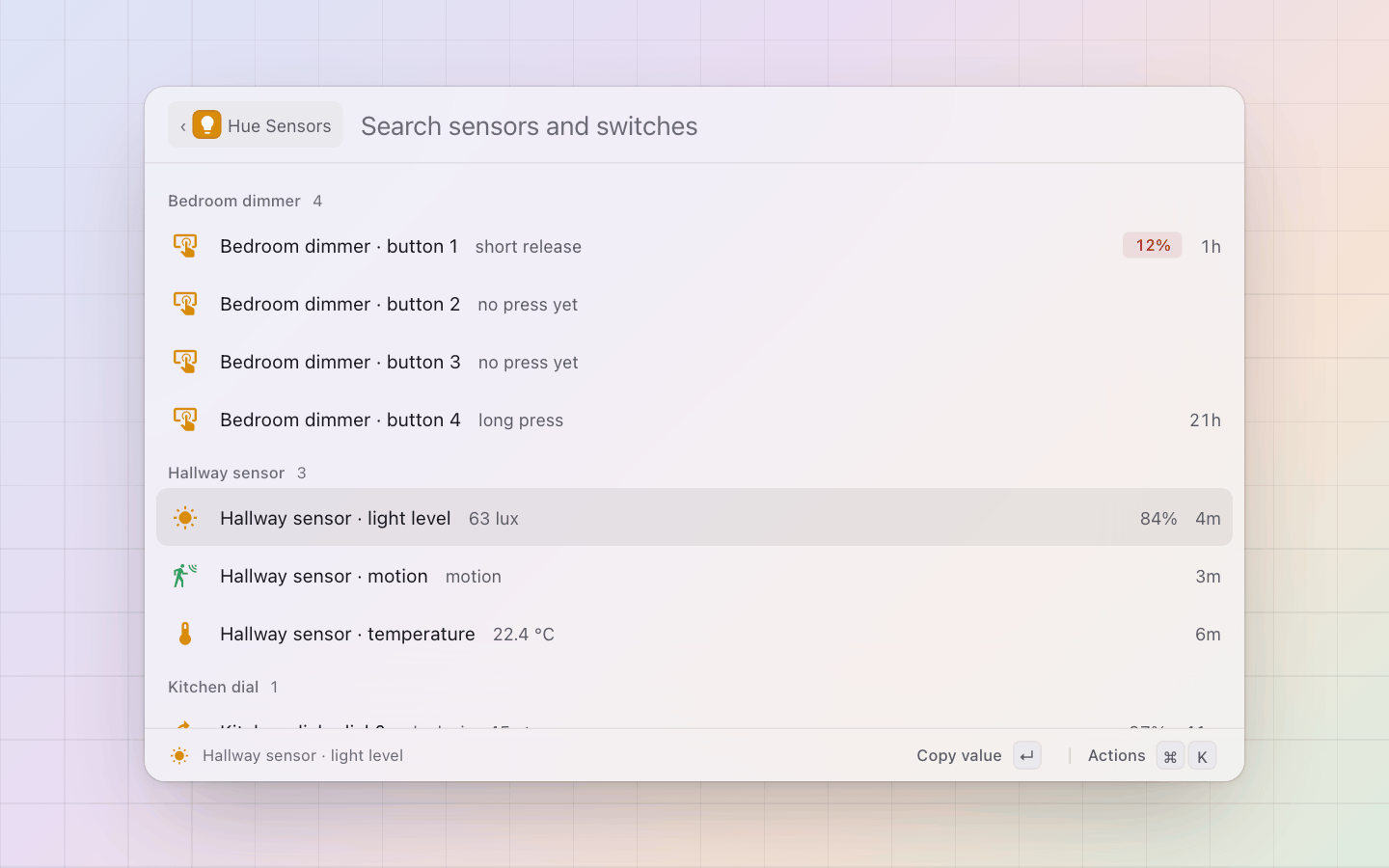

Hue Sensors (hue-sensors, live): motion (motion/clear), temperature (°C), light level (lux, from the bridge's log scale), buttons and dials with their last event, contact sensors; grouped by device, the device's battery on its first row (red when low), when the reading last changed, disabled when the sensor is off. Enter copies the reading, cmd+e enables or disables a sensor that can be.

Hue Automations (hue-automations, live): the bridge's behaviour instances (wake up, go to sleep, timers, motion) with the script's name, running/disabled/error. Enter enables or disables.

Hue Entertainment (hue-entertainment, live): the areas with their type and light count; Enter starts streaming (action: start, the lights go to streaming mode until a client streams or the bridge times out), cmd+enter stops.

The bar item

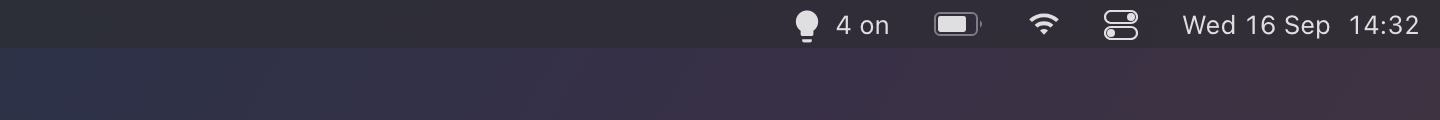

hue/home: the main room's colour as a dot (a PNG, since the menu bar draws PNGs only) and N on; the bulb glyph, muted, with everything off; hidden until a bridge is paired; stale when a paired bridge does not answer. The main room is the item's main_room setting, else the room with most lights on. Rendered every 60 s and on show, wake and network; pushed on every stream event, so the popover follows a switch or the Hue app too.

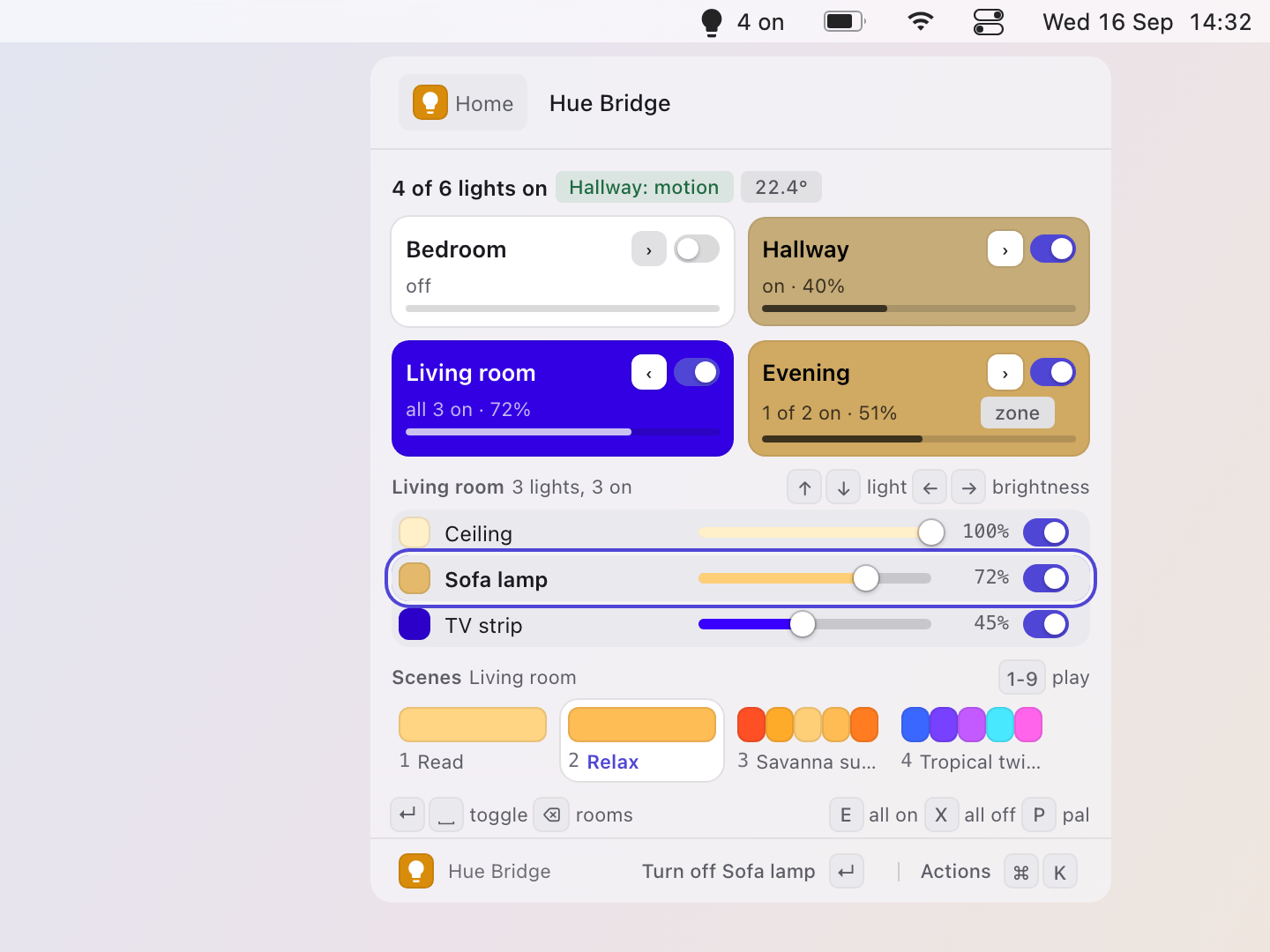

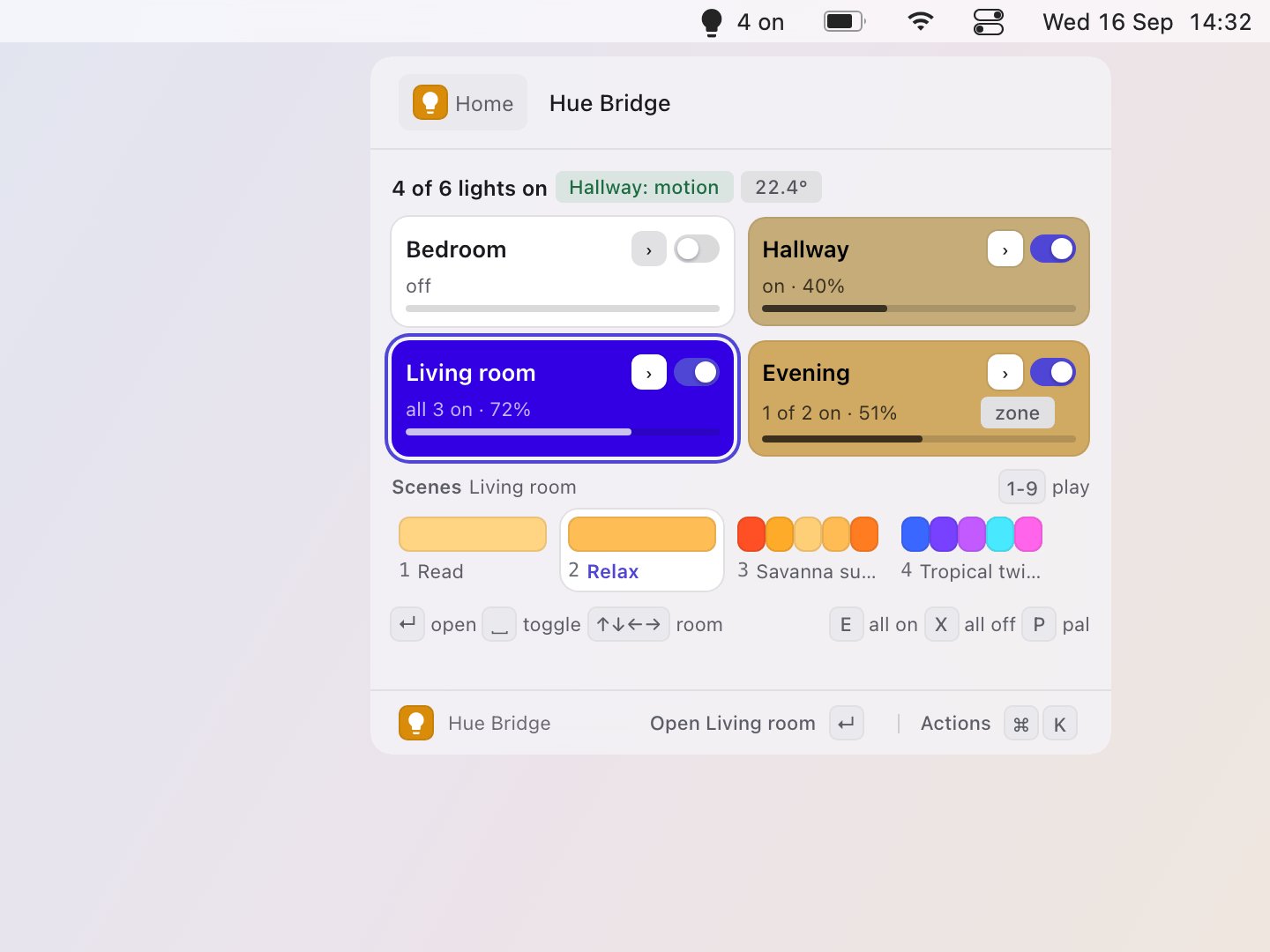

The popover (420 px, popover.ts) is the home in reach: a status row (how many lights are on, each motion sensor as a badge, green while it sees motion, the temperatures, a red badge for a bridge that is away), the rooms and zones as a grid of tiles two a row, each in its lit colour shaded by the brightness with its name, a switch, the count and brightness and a thin brightness bar (an off room is a plain card), then the scenes as five-swatch tiles with their digit (the opened room's, else the item's scenes by name or id, else the main room's, nine at most; the one playing is a card with its name in the accent), and the key hints. A tap on a tile toggles the room, the switch too; the chevron opens the room: its lights inline, each a swatch, the name, a brightness slider (a tap sets the level where it landed), the percentage and a switch.

The cursor is kept while the popover is closed, so it reopens where it was.

Links

pal://hue/toggle?room=living-room (on=1 sets rather than toggles), pal://hue/scene?name=relax&room=living-room (dynamic=1 plays the palette), pal://hue/off. Rooms and scenes go by name, slug or id.

Settings, [extensions.hue]

home item settings, [bar.items."hue/home".settings]:

What it does not do

• No scene editing, no naming, no light setup: the Hue app's.
• Entertainment streaming itself (DTLS to the bridge): only start/stop.
• The mDNS browse is best effort: a box without dns-sd/avahi-browse relies on the cloud endpoint or a typed address.

Tests

host/test/extensions/hue.test.ts against hue-mock.ts, a bridge over https with a self-signed certificate that answers the routes above, feeds the event stream from every PUT, and arms its button on press().
