WhatsApp

Your WhatsApp chats in the panel, through a self-hosted OpenWA gateway: the chats by recency with the newest message and who sent it, the unread ones at the root and counted on the bar, a full-text search over the whole archive, the contacts with their numbers. Reading and marking read are always on; sending, replying and reacting only where you turn send on, and then only as a form you submit.

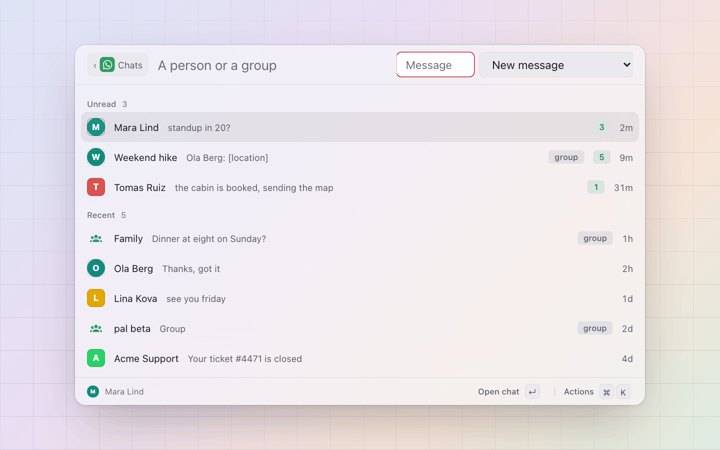

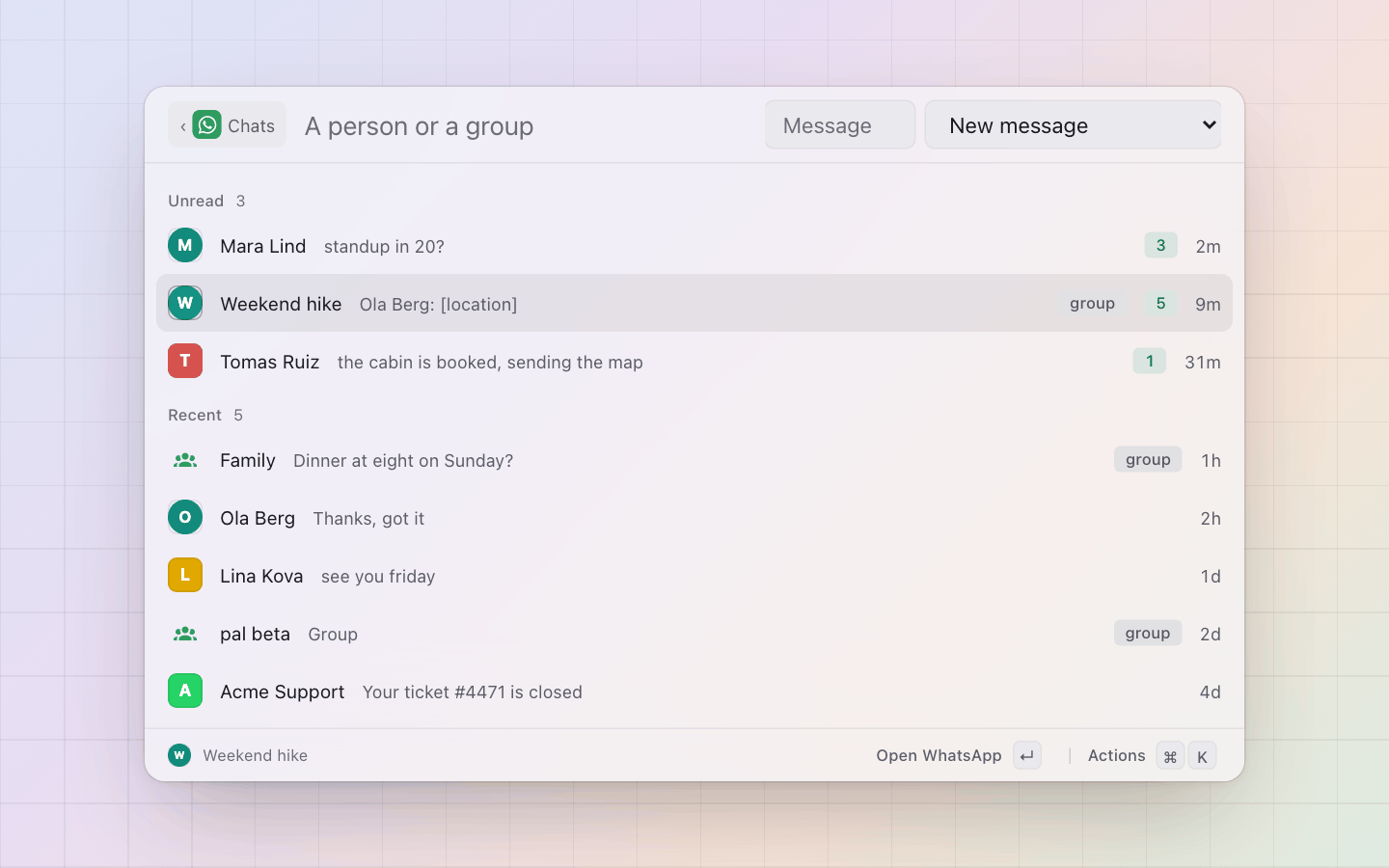

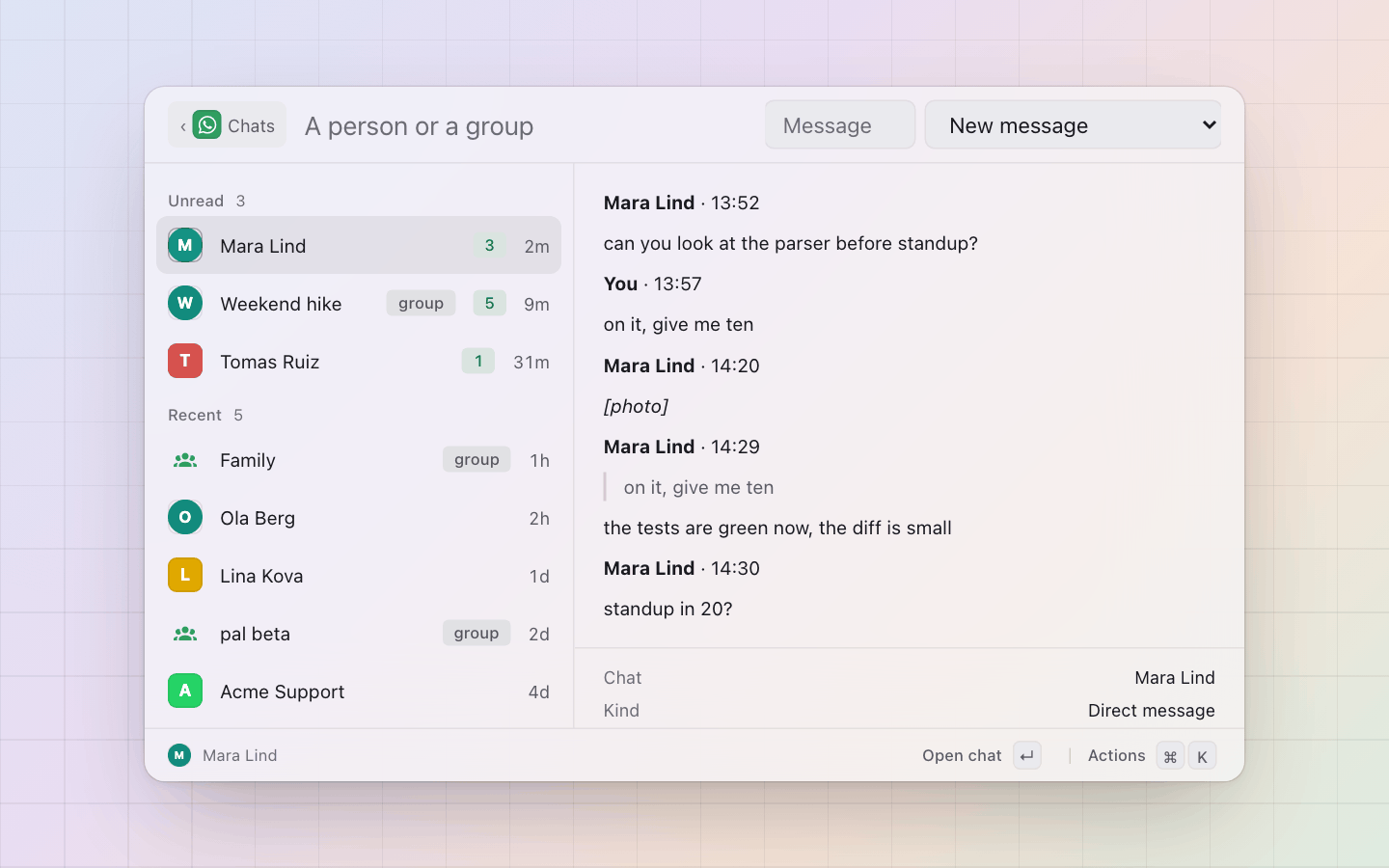

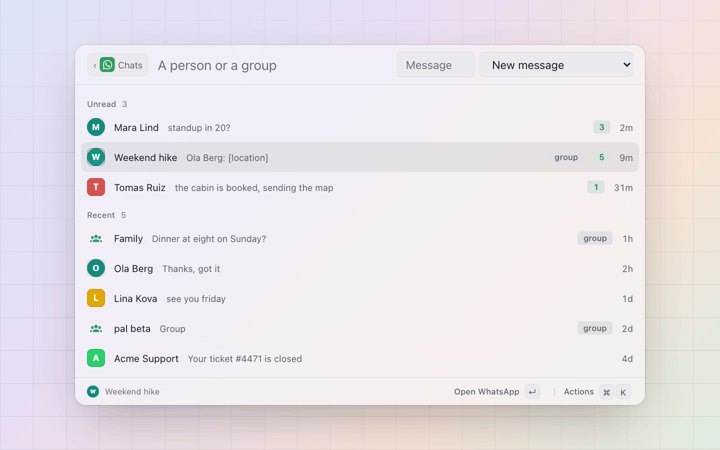

Chats lists every conversation the session has (direct chats and groups; the status feed and broadcast lists are left out), the unread ones first, then newest first. A row is the profile picture (or the initial on a tile; a group without a picture takes the group glyph), the name, the newest message on one line (in a group with who wrote it), a group tag, the unread count in green, and how long ago. For the unread chats the newest messages are fetched live so the line and the sender are right; for the rest the gateway's own one-line summary stands (media messages have none, so the line is empty). The pane (⌘I, or rest on the row) is the last twenty messages as a conversation: the sender in bold ("You" for yours) with the time, a quoted reply as a blockquote under it, a photo, a voice message, a document or a sticker named in brackets, then the chat's facts (kind, unread, the phone, when the newest message came) and a link into the web client.

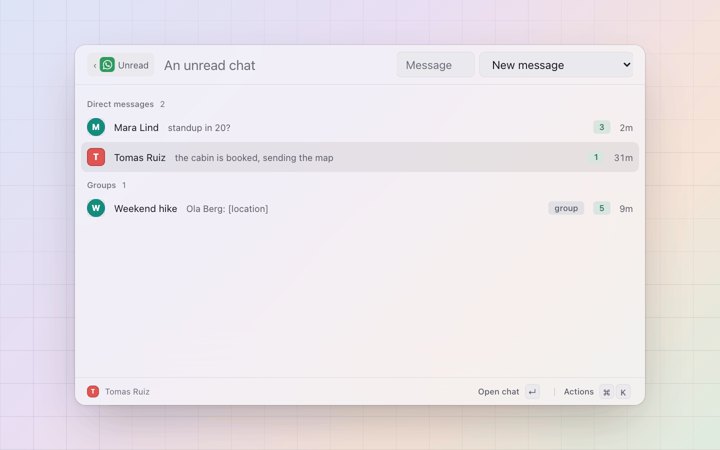

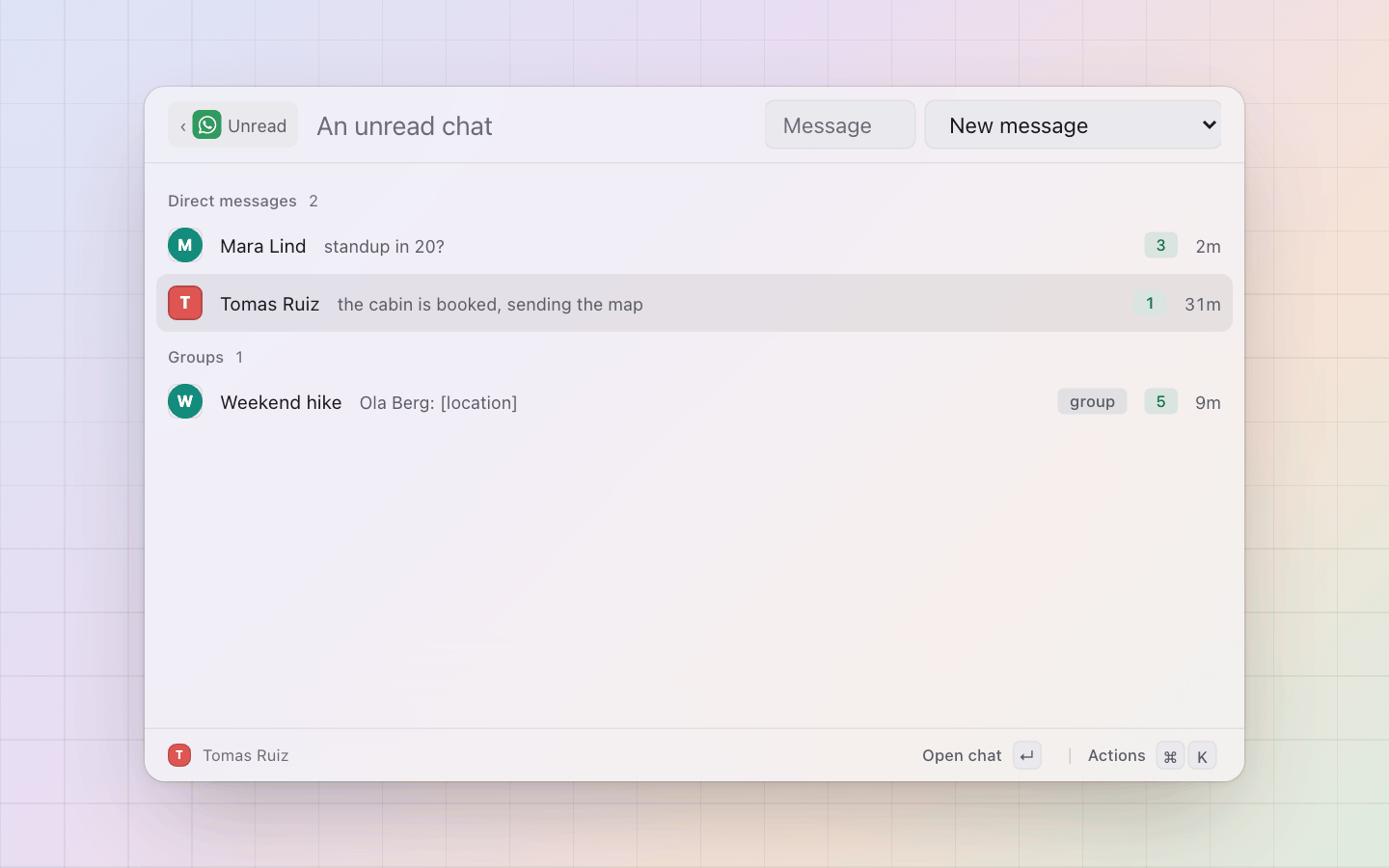

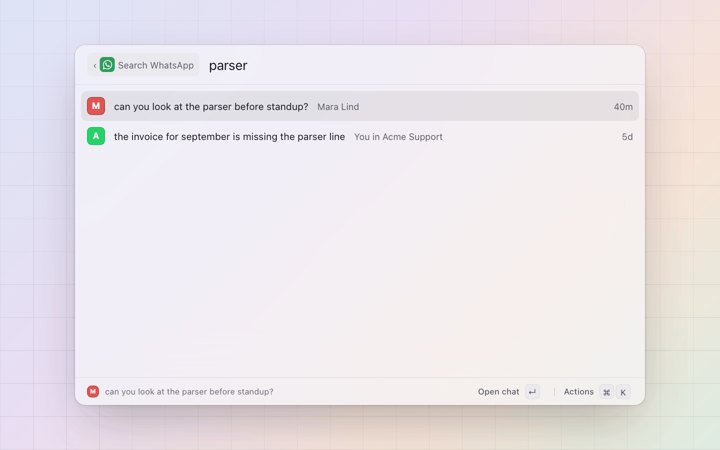

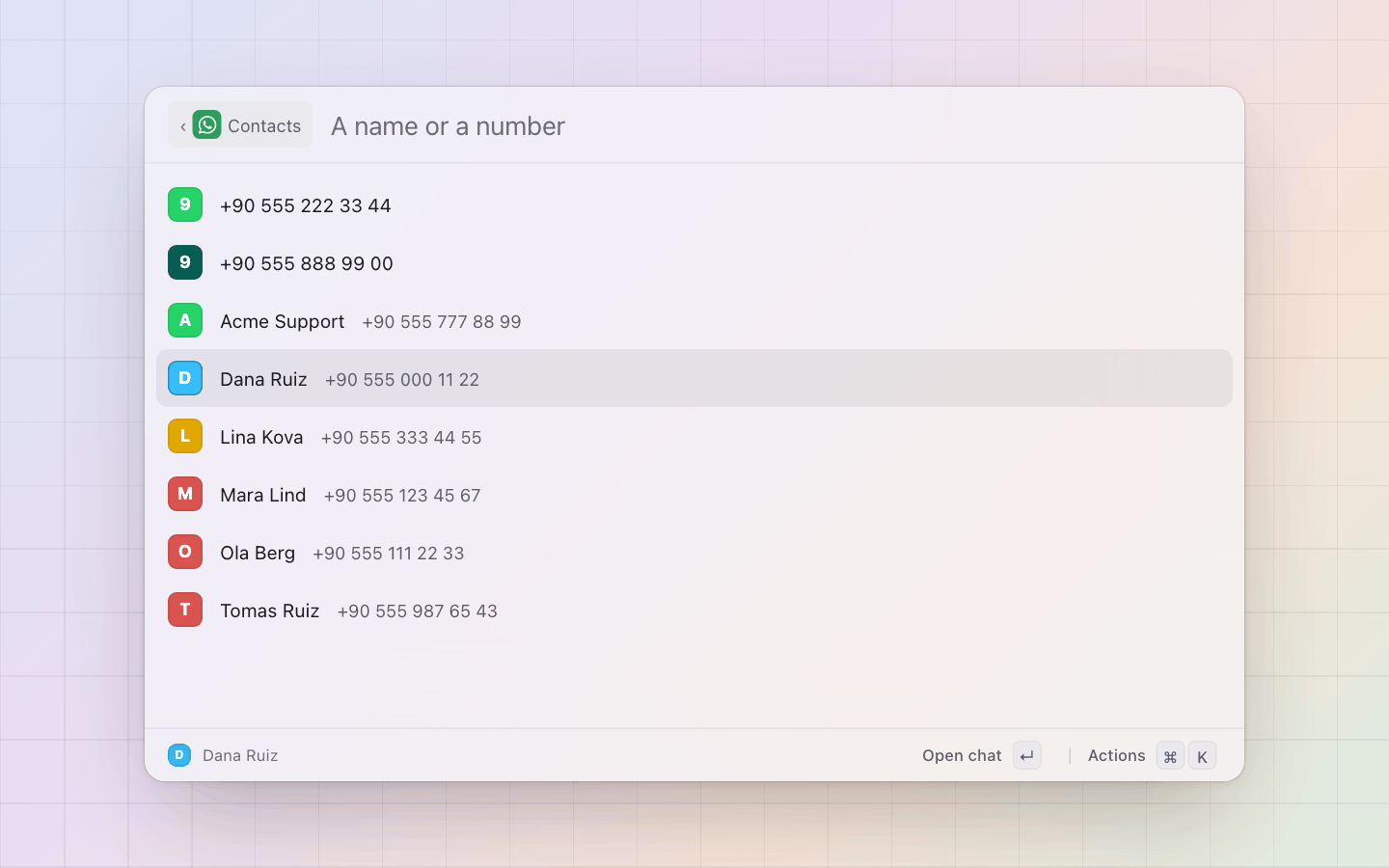

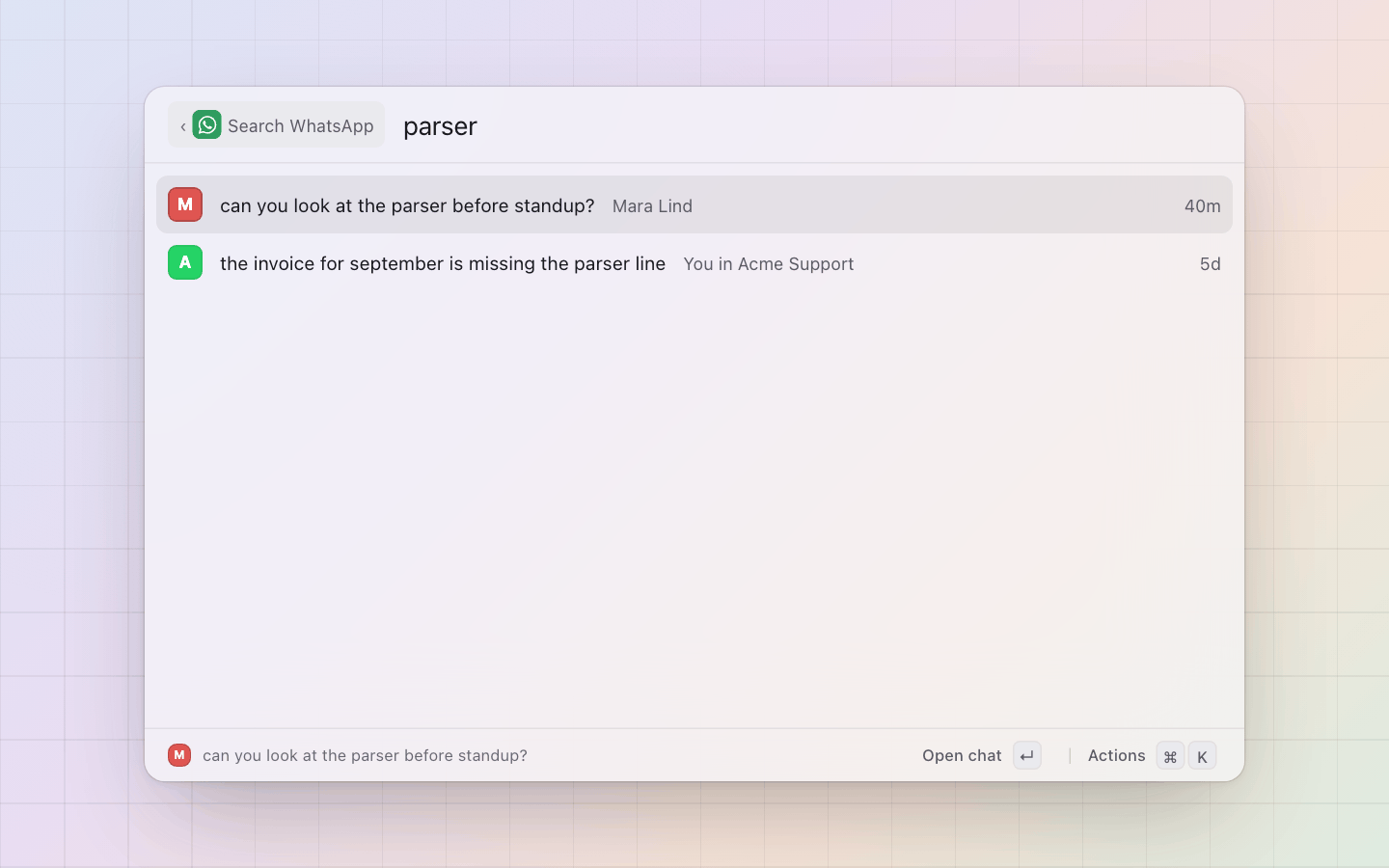

Unread is the same rows over the chats with something unread, direct messages first then groups, so the root carries them; "Nothing unread" when there are none. Search WhatsApp sends what you type to the gateway's /api/search (full-text over the archive, every message back to the first chat, <mark>-highlighted snippets), a keystroke waiting 300 ms for the next; a row is the matching line, who said it where, and when (the hits in chats already named show first, the rest once a chat the list lacks has its contact's name); Enter opens the chat, ⌘C copies the message, the pane is the chat's conversation. Contacts is every saved contact (the ones the phone has a name for) with the number, one row per number; Enter opens a chat, ⌘C copies the number, ⌘⇧C copies a vCard 3.0 (FN and TEL), so the person lands in Contacts or another phone. Marked rows copy together, one per line (several vCards make one .vcf); opening stays one chat, since WhatsApp shows one at a time.

The bar item

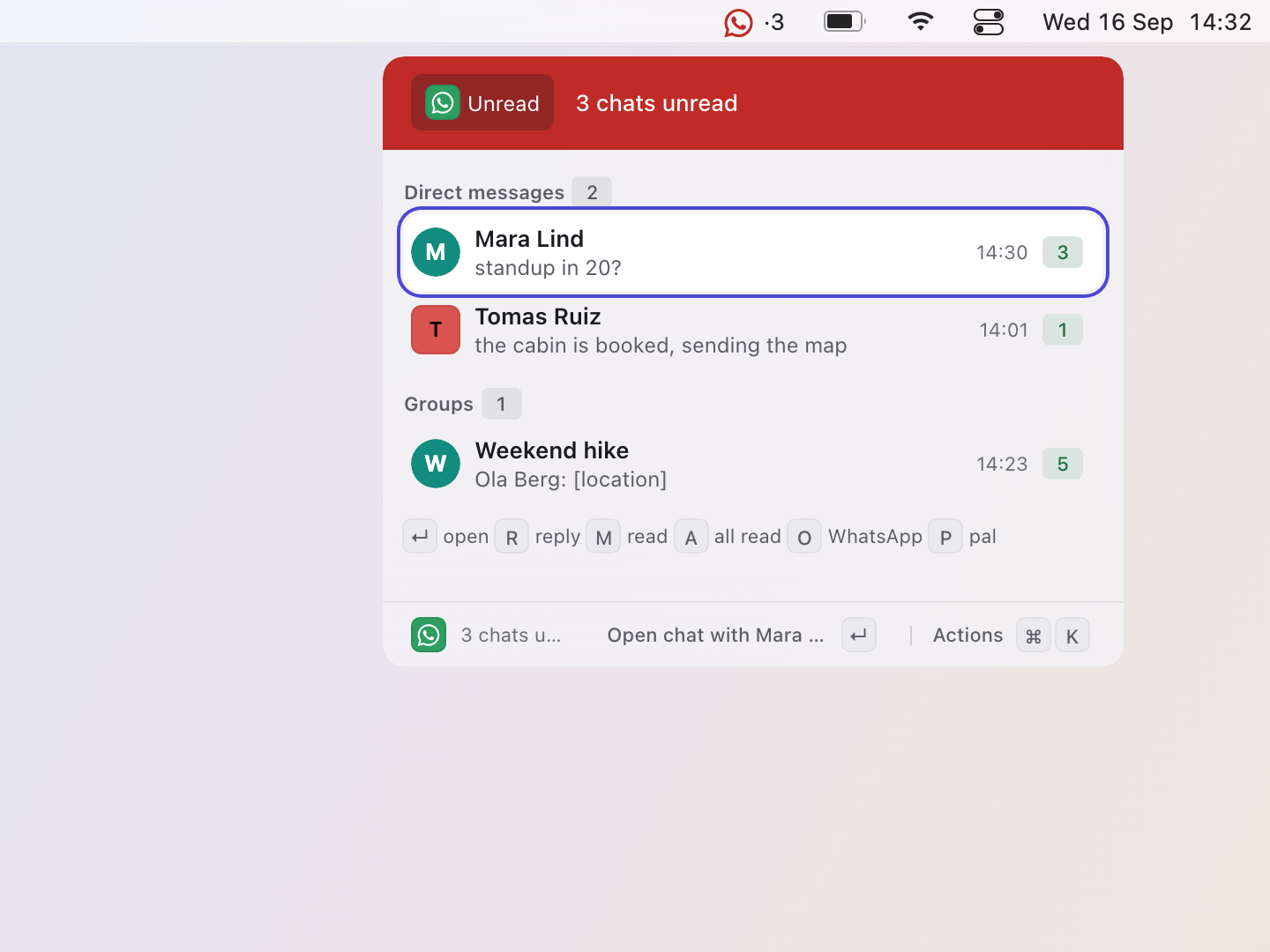

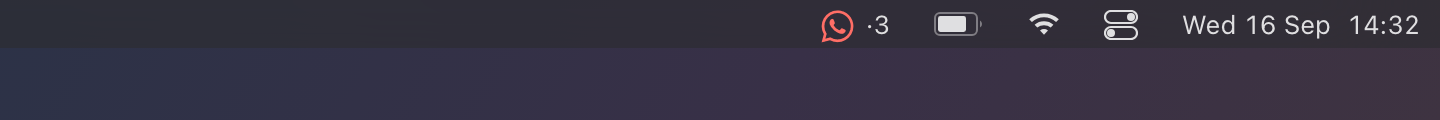

whatsapp/unread: the number of unread chats as the badge, hidden at zero and red while a direct chat is among them by its rules (quiet, dm under Settings > Bar); every 120 s and when the panel shows, after a wake and when the network is back. The popover lists them, direct messages then groups, each with the picture, the newest message and the time, and a cursor the arrows move and a click sets: Enter opens the chat, m marks it read, a every listed one, o opens WhatsApp, p the Unread palette, ⌘⇧O the web client; with send on, r turns the search row into a message field whose Enter sends to the focused chat. With show = "always" under [bar.items."whatsapp/unread"] (docs/config.md) the glyph stays on the bar while nothing is unread, muted, and the popover lists the recent chats instead.

What it reads, and what it writes

Everything goes to the gateway's HTTP API with the api_key as x-api-key; nothing else sees the chats. Read: GET /api/sessions (once, to resolve the session's UUID from its name; kept in storage), /chats (the list, live from WhatsApp), /messages/<chat>/history (the newest messages of the unread chats and the pane's twenty, live) and /messages?chatId= (the archive's rows for the same chat, which carry the sender's saved name and the quoted reply the live shape lacks; the two are merged by message id), /contacts (a thousand a page), /contacts/<id> (a group member's name, once each), /contacts/<lid>/phone (the number behind a LID-era chat id, once each), /contacts/profile-pictures (eight ids per pass, in the background: the gateway resolves them one by one at about 150 ms each, so they are never on a listing's path; the urls, good for about nine days, are kept in storage), /search.

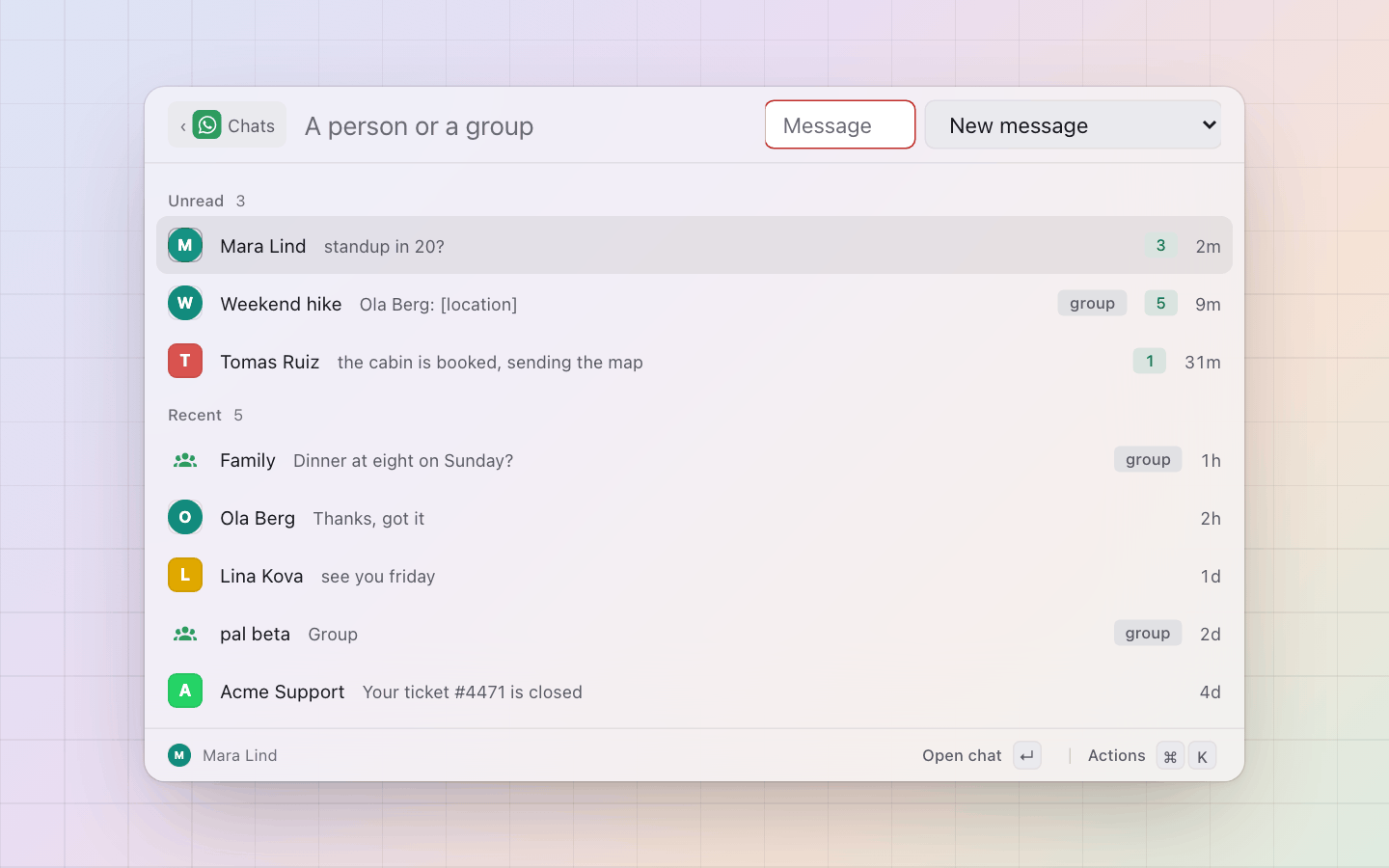

Written, always: POST /chats/read and /chats/unread (Mark as read / unread: the owner's daily write, and the account's own setting on the phone). Written only with send on, each from a form you submit or the popover's field on Enter: POST /messages/send-text, /messages/reply (a quoted reply), /messages/react. With send off none of the three is offered anywhere, and a pick that asks anyway is refused with a toast naming the setting, so a stale row from before a settings change cannot send. The key can do all of it; the setting is the control.

Setting up

The bundled configuration is the owner's: OpenWA on his own box at http://wp.lan (base_url), one session named main linked to his phone, the archive of every message since 2018 behind /api/search, sending off. A generic install needs an OpenWA gateway of your own (Docker, Postgres or SQLite; the project's README), a session linked by scanning its QR code in OpenWA's UI, and an API key from its Settings, API keys, put under api_key (it lands in the OS keychain). session is the session's name (or its UUID). The search palette needs OpenWA's full-text index (built into the Postgres and SQLite stores) or a search plugin; without one the palette shows one row naming what the gateway answered.

Hint rows name the fix: no key set (Open WhatsApp settings), the gateway unreachable at its url, the key rejected (401), the session not ready (a qr_ready session says to scan the code at the gateway's url), a session name nobody has, the rate limit (Retry-After, refused locally until then), the search provider down (the status and the message the gateway gave).

Not shown, because the gateway's chat list does not carry them: muted and pinned chats, a group's member count. A chat's picture is asked for among the newest 48 only; the rest keep the initial. WhatsApp Channels, the status feed and broadcast lists are not listed.

Links

• pal://whatsapp/open?chat=<id | phone | name>: a chat id (...@c.us, ...@lid, ...@g.us), a phone number, or a name the chats or the contacts have (exact, then a prefix).
• pal://whatsapp/search?q=<words>: the search palette with the query typed.
