Disk Space

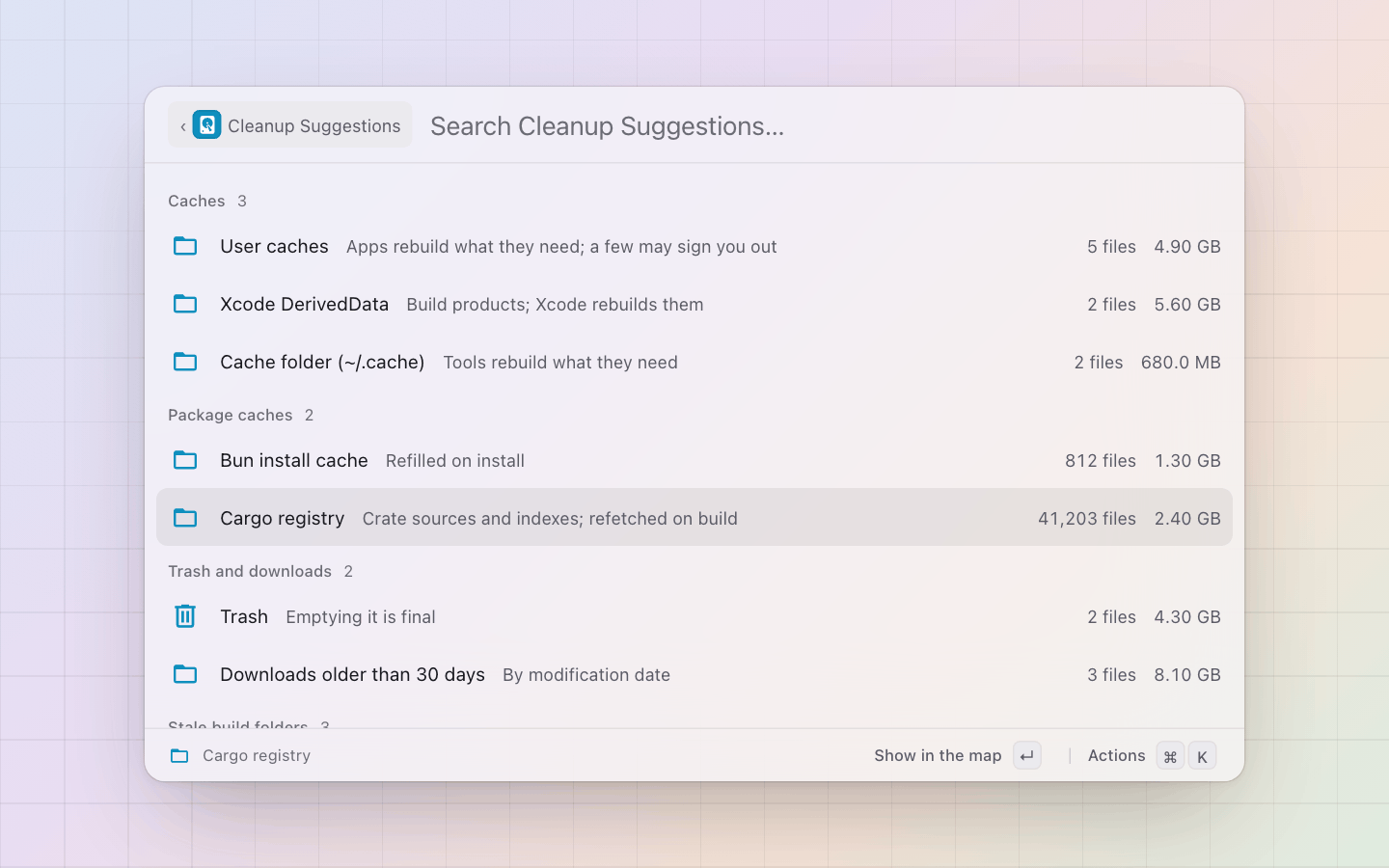

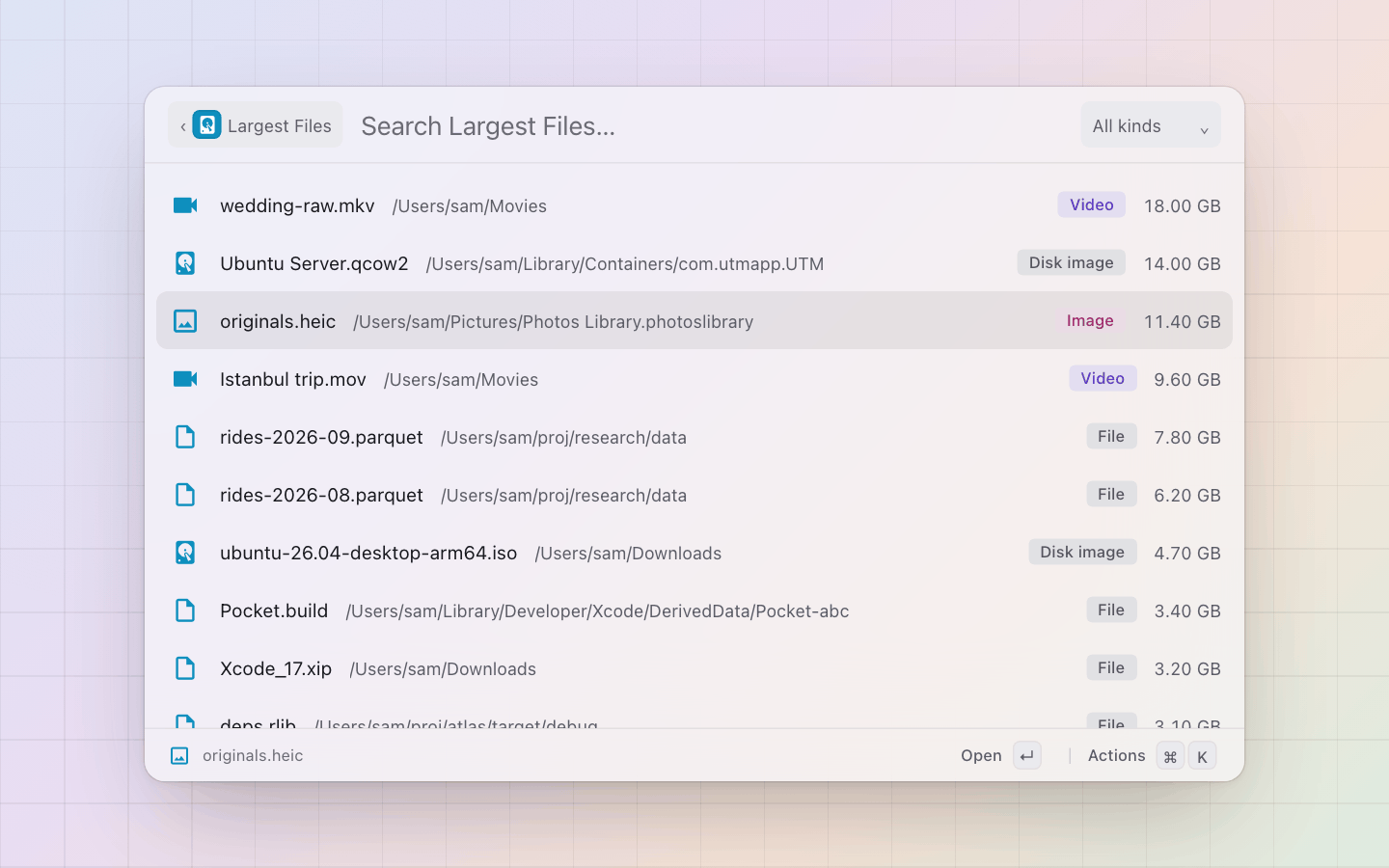

What is taking the space, and what to do about it. A root (your home folder, a mounted volume, any folder) is scanned into a tree and drawn as a treemap: boxes inside boxes, area by size, the biggest first, each folder's own children faintly inside it. Enter zooms into a box, Backspace out, the arrows walk the boxes by position. Mark boxes and trash them together. Beside the map: the biggest files and folders as lists, and cleanup suggestions (caches, stale build folders, old downloads, the Trash) with their sizes.

The palettes

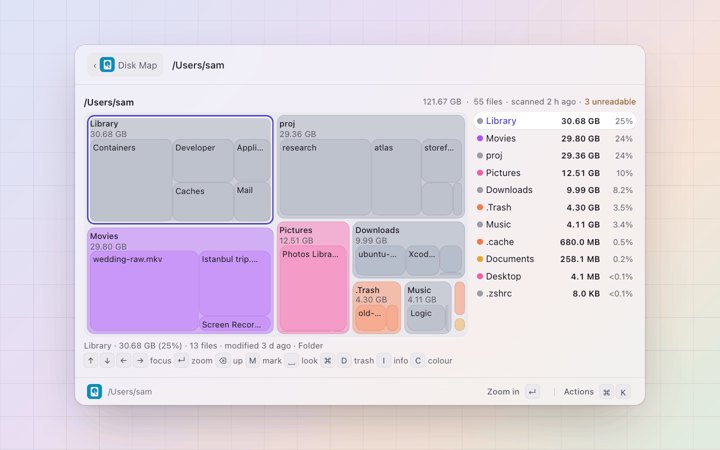

The map

~ › proj › pal                       8.05 GB · 8 files  scanned 2 h ago  2 marked
┌──────────────────┬─────────────┐  ● ✓ target       4.24 GB   53%
│ target  4.24 GB  │ .git 2.6 GB │  ● .git           2.60 GB   32%
│ ┌──────────────┐ │ ┌─────────┐ │  ● ✓ node_mod…    1.20 GB   15%
│ │ debug        │ │ │ pack    │ │  ● app           12.0 MB  0.1%
│ └──────────────┘ ├─────────────┤  ● README.md       24 KB <0.1%
│                  │ node_modules│
└──────────────────┴─────────────┘
node_modules · 1.20 GB (15%) · 1 file · modified 1 mo ago · Folder
↑↓←→ focus  ⏎ zoom  ⌫ up  M mark  ␣ look  ⌘D trash  I info  C colour

• The board: the folder's children as squarified boxes (Bruls, Huizing, van Wijk 2000: sorted largest first, each strip laid along the shorter side of what is left and taking items while its worst aspect ratio does not get worse), so boxes stay near square. The first 40 by size are drawn, the rest fold into one "N more items" box so the areas still add up. A box big enough shows its name and size, and its own children faintly inside it (the SpaceSniffer look); a folder's colour is the kind that weighs most below it (WinDirStat's colouring), or, with colour = "depth", its place among the siblings with the nested boxes in their parent's hue (DaisyDisk's ring). The focused box wears the accent ring; a marked one the trash tint and a check.
• The strip beside it: the same children as rows (name, size, share), the focused one lit; a click on a row focuses it, on a box zooms into it (a file: focuses it). The crumbs above are clickable.
• The footer: the focused box's name, size and share, count, modification age and kind; then the keys.

Escape leaves the map, as in every view level. cmd+backspace and cmd+i are the shell's own in a view (pop, detail), so the map's trash is cmd+d as in Files and its info is i.

Scanning

A scan is a Bun walk of the extension's own worker: every directory's entries listed and stat'ed in parallel with the others in flight, adding each file's size to every ancestor as it lands, so the map is drawn live while the scan runs (pushed every 250 ms with view.update, the boxes gliding as the sizes settle). Both sizes are kept: allocated (blocks * 512, what deleting frees; the default) and apparent (size); the sizes setting picks the one shown, a flips it. A hard-linked file counts once (by inode). Other file systems are skipped unless cross_devices is on, but macOS firmlinks (/Users, /Applications on the Data volume, from /usr/share/firmlinks) are always crossed, so a scan of Macintosh HD sees your files without walking every mounted disk image. Symlinks are never followed. A folder that cannot be read is counted ("3 unreadable" in the header); on macOS that is usually Full Disk Access for ~/Library/Mail and the like.

Per directory the 256 biggest files are nodes and the rest fold into one "N smaller files" node, so a million-file home stays ~800 k nodes (130 MB of heap).

Measured on this Mac (M-series, APFS, 2026-09-22): ~ with 1.07 M files in 150 k folders, 283 GB: the Bun walk 6.4 to 7.2 s (the sync variant 3.5 times slower), du -sk ~ 28.5 s, mdfind 2.5 s but it only knows 185 k of the 313 k files under ~/proj (Spotlight skips node_modules, hidden folders and more) and gives no per-file sizes without a second pass, so it is out. ~/proj (313 k files, 100 GB): the walk 1.1 to 1.3 s, du 1.2 s. The walk's totals match du -sk to the block once hard links are counted once (96.2 GB both).

Persistence

When a scan lands, the tree is packed into the extension's storage: the biggest nodes under a size cut (every ancestor of a kept node is at least as big, so the kept set is a subtree from the root), each as [name, dir, alloc, size, files, mtime, kind, kids], ~60 bytes a node, shrunk until it fits 56 KB; the four most recent roots are kept under the 256 KB cap. Reopening a root draws that at once with "scanned 2 h ago" in amber for the partial tree; Rescan is cmd+r. A directory whose children were cut says so in the packed form, and a zoom into it scans that folder alone (the subtree replaced in place, the map following live), so a saved scan is browsable to any depth. A trash takes the node out of every tree that holds it and saves.

What we took from each

• SpaceSniffer: the look. Boxes inside boxes with a folder's own children drawn inside it, a click zooms, the map updating while the scan runs. Its rectangles keep a border and a label strip; ours keep a hairline and a name-and-size label when the box has room.
• WizTree: speed from the file system's own structure (the MFT on NTFS). APFS has no readable equivalent, and Spotlight is incomplete, so the speed comes from a breadth-parallel walk instead (numbers above); the lesson kept is "the whole disk in seconds, drawn as it comes", not a progress bar and then a picture.
• WinDirStat: the treemap next to a tree (our side strip) and the colour by file type, with a folder taking the colour of what weighs most below it; its cushion shading is not reproduced (the view tree draws flat tints, which read better at 470 px).
• DaisyDisk: colour by depth (the ring, colour = "depth"), and the Collector: mark things as you browse and delete them together, the total shown while you collect (m, "Trash marked (3, 1.2 GB)").
• GrandPerspective, Disk Inventory X: colour by kind as the default, reveal and Quick Look on any box.
• Baobab: a root chooser of the mounted volumes with their free space before the map.
• dust: the biggest-first ordering everywhere, the share next to each size, and folding the small remainder into one line rather than hiding it.
• ncdu: keyboard-first browsing (zoom in and out, a delete with a confirm) and a rescan of one directory (r) rather than the whole tree.
• duc: scan once, browse later. Our packed tree in storage and the subtree rescan are its database and its refresh.
• The squarified treemap (Bruls, Huizing, van Wijk, 2000): the algorithm as published, in layout.ts, pure; the strips it produces are drawn as nested flex stacks weighted by their px extents (a flex weight and a height on a stack, added to the view tree for this), so the split is exact at the panel's width and the map needs no absolute positioning.

Docker images are not listed: the docker extension exposes no size to other extensions, and reading docker system df here would be a second Docker client.

Links

• pal://space/scan?root=~/proj opens the map of a folder, scanning it first when there is no scan (rescan=1 scans again).
• pal://space/largest?root=~/Downloads opens the largest files under a folder.

Settings

[extensions.space]:

For the tests, PAL_SPACE_TRASH names a stand-in for Finder's delete (gio trash on Linux) taking the path, or --empty.

Files

layout.ts the squarified strips, the flex grouping and the spatial neighbour (pure); scan.ts the tree, the walk, the kinds, the packed form; render.ts the map as a view tree; rows.ts the list rows; index.ts the palettes, the scans and the picks; fixture.ts the gallery fixture (a made-up home).
